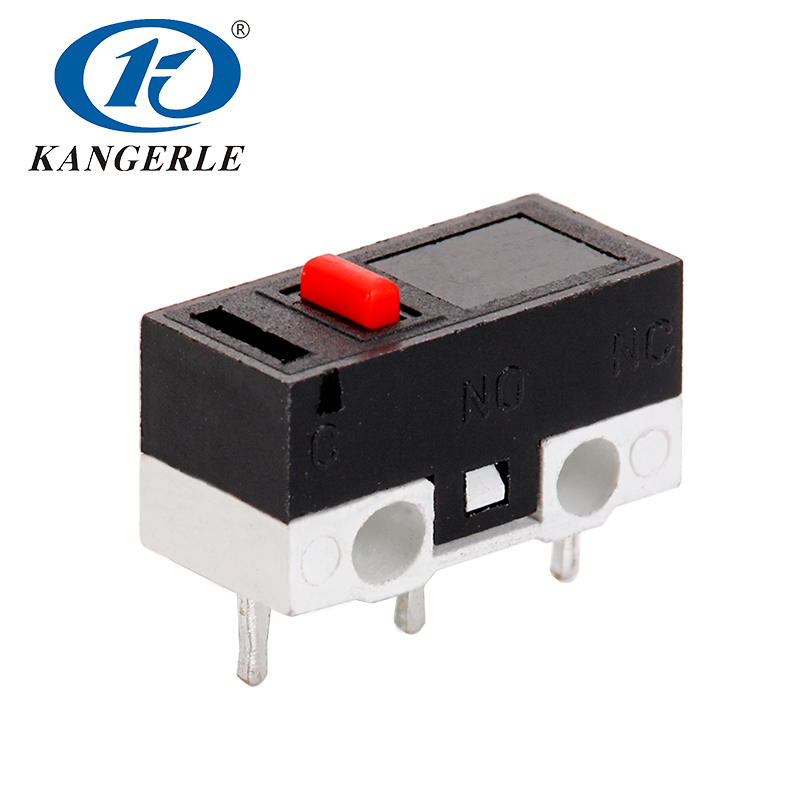

Micro switch KW10-1A-A

Micro switch KW10 is small in size and compact in structure, which is a miniature micro switch. It has a micro contact gap and a tiny operation travel, and can realize the on-off situation of the circuit with high sensitivity. KW10 micro switch has three types of circuit codes: SPDT type, SPST-NO type, and SPST-NC type. It is also equipped with a wide range of wiring terminals and a variety of levers. Stable quality and long electrical life make it applied in many fields.



Product Series: KW10 Micro Switch
Appliction: ETC, mouse, parcel locker, automobile reading lamp. car seat belts, fingerprint door lock, cup warmer coaster, sweeping robot, portable air pump, etc.

Micro switch KW10-1A-A

Micro switch KW10 is small in size and compact in structure, which is a miniature micro switch. It has a micro contact gap and a tiny operation travel, and can realize the on-off situation of the circuit with high sensitivity. KW10 micro switch has three types of circuit codes: SPDT type, SPST-NO type, and SPST-NC type. It is also equipped with a wide range of wiring terminals and a variety of levers. Stable quality and long electrical life make it applied in many fields.



Product Series: KW10 Micro Switch
Appliction: ETC, mouse, parcel locker, automobile reading lamp. car seat belts, fingerprint door lock, cup warmer coaster, sweeping robot, portable air pump, etc.

Micro switch KW10-1A-A

Micro switch KW10 is small in size and compact in structure, which is a miniature micro switch. It has a micro contact gap and a tiny operation travel, and can realize the on-off situation of the circuit with high sensitivity. KW10 micro switch has three types of circuit codes: SPDT type, SPST-NO type, and SPST-NC type. It is also equipped with a wide range of wiring terminals and a variety of levers. Stable quality and long electrical life make it applied in many fields.



Product Series: KW10 Micro Switch
Appliction: ETC, mouse, parcel locker, automobile reading lamp. car seat belts, fingerprint door lock, cup warmer coaster, sweeping robot, portable air pump, etc.

Micro switch KW10-1A-A

Micro switch KW10 is small in size and compact in structure, which is a miniature micro switch. It has a micro contact gap and a tiny operation travel, and can realize the on-off situation of the circuit with high sensitivity. KW10 micro switch has three types of circuit codes: SPDT type, SPST-NO type, and SPST-NC type. It is also equipped with a wide range of wiring terminals and a variety of levers. Stable quality and long electrical life make it applied in many fields.



Product Series: KW10 Micro Switch
Appliction: ETC, mouse, parcel locker, automobile reading lamp. car seat belts, fingerprint door lock, cup warmer coaster, sweeping robot, portable air pump, etc.

PRODUCT DETAIL

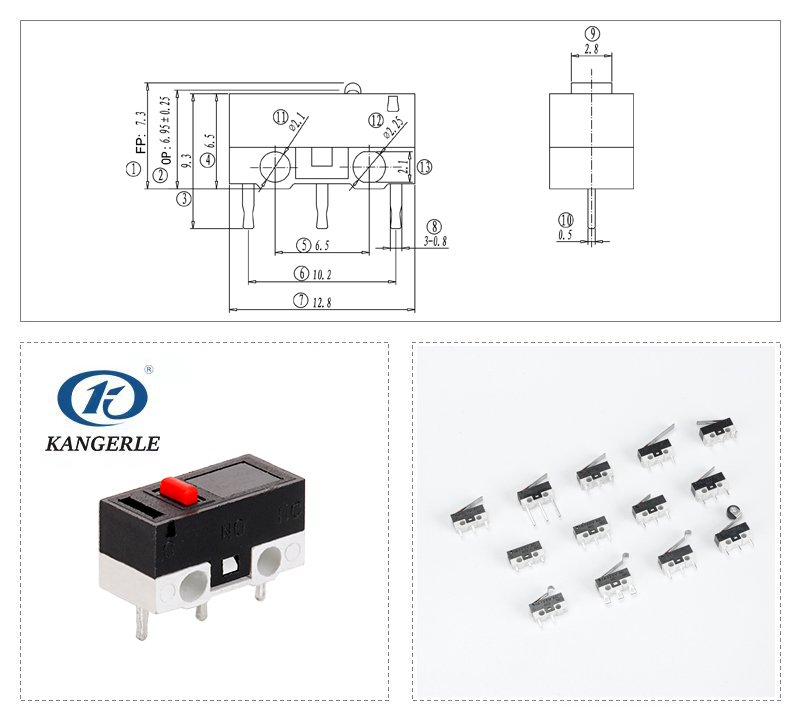

Micro switch KW10-1A-A插图

Chinakel KW10 Micro Switch Feature

Rated Load DC30V 0.1A
Temperature -10~60℃
Operating Force ≤200gf
Circuit SPDT/SPST NO/SPST NC
Contact Resistance ≤500mΩ
Insulation Resistance ≥100MΩDC500V
Withstand Voltage ≥100VAC
Protection Level NO
Electrical Life ≥10,000 cycles
Mechanical Life ≥500,000cycles
Certification RoHS
