The KW5-1C-01-B-A waterproof micro switch features an IP67-rated sealed design, compact construction, and a reliable normally open contact. Rated for DC 12V 3A or AC 250V 0.1A, it operates reliably from -40°C to +85°C and offers a service life of 100,000 cycles. Primarily designed for EV charging connectors, it provides accurate connection detection, locking-position feedback, and safety interlock signal control in demanding automotive environments.
Serie de productos: KW5 Series.
Aplicaciones: EV charging connectors.
The KW5-1C-01-B-A waterproof micro switch features an IP67-rated sealed design, compact construction, and a reliable normally open contact. Rated for DC 12V 3A or AC 250V 0.1A, it operates reliably from -40°C to +85°C and offers a service life of 100,000 cycles. Primarily designed for EV charging connectors, it provides accurate connection detection, locking-position feedback, and safety interlock signal control in demanding automotive environments.
Serie de productos: KW5 Series.
Aplicaciones: EV charging connectors.
The KW5-1C-01-B-A waterproof micro switch features an IP67-rated sealed design, compact construction, and a reliable normally open contact. Rated for DC 12V 3A or AC 250V 0.1A, it operates reliably from -40°C to +85°C and offers a service life of 100,000 cycles. Primarily designed for EV charging connectors, it provides accurate connection detection, locking-position feedback, and safety interlock signal control in demanding automotive environments.
Serie de productos: KW5 Series.
Aplicaciones: EV charging connectors.
The KW5-1C-01-B-A waterproof micro switch features an IP67-rated sealed design, compact construction, and a reliable normally open contact. Rated for DC 12V 3A or AC 250V 0.1A, it operates reliably from -40°C to +85°C and offers a service life of 100,000 cycles. Primarily designed for EV charging connectors, it provides accurate connection detection, locking-position feedback, and safety interlock signal control in demanding automotive environments.
Serie de productos: KW5 Series.
Aplicaciones: EV charging connectors.

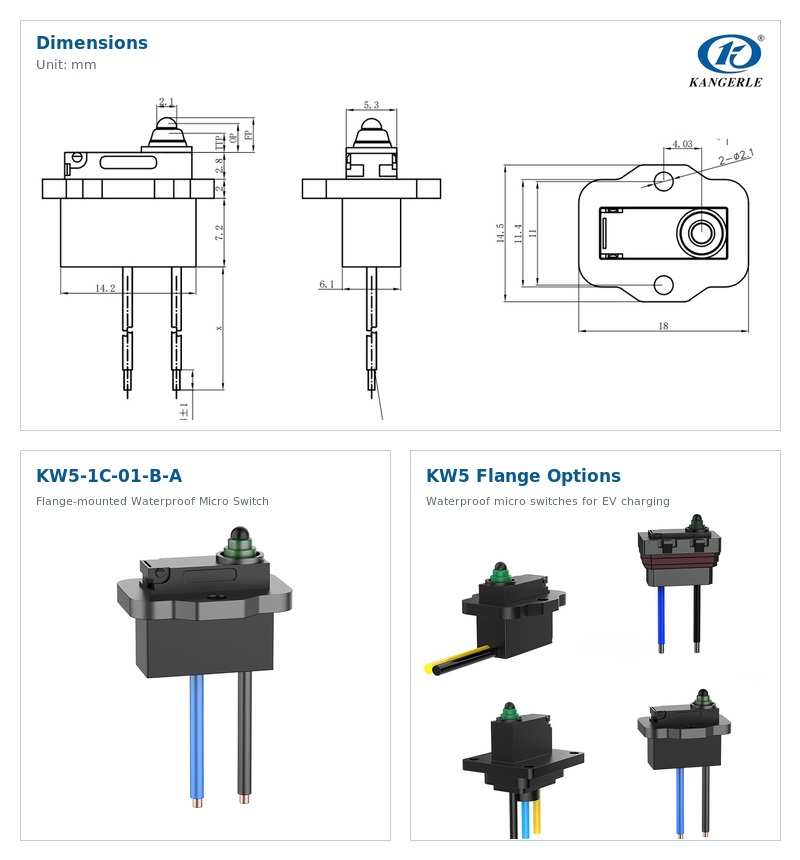

| Carga nominal | DC12V 3A / AC250V 0.1A Resistive Load |
| Fuerza Operativa | ≤ 150 g |
| Free Position(FP) | 3.8mm MAX |
| Operating Position(OP) | 3±0.4mm |
| Total Travel Position(TTP) | 1.95mm MIN |
| Resistencia de contacto | ≤500mΩ |
| Grado de protección | IP67 |
| Resistencia de aislamiento | 100MΩMin (500V DC) |
| Vida eléctrica | Min 100,000/cycles |
| Vida mecánica | Min 500,000/cycles |
| Temperatura | -40℃ ~ +85℃ |
| Proceso de dar un título | RoHS |
