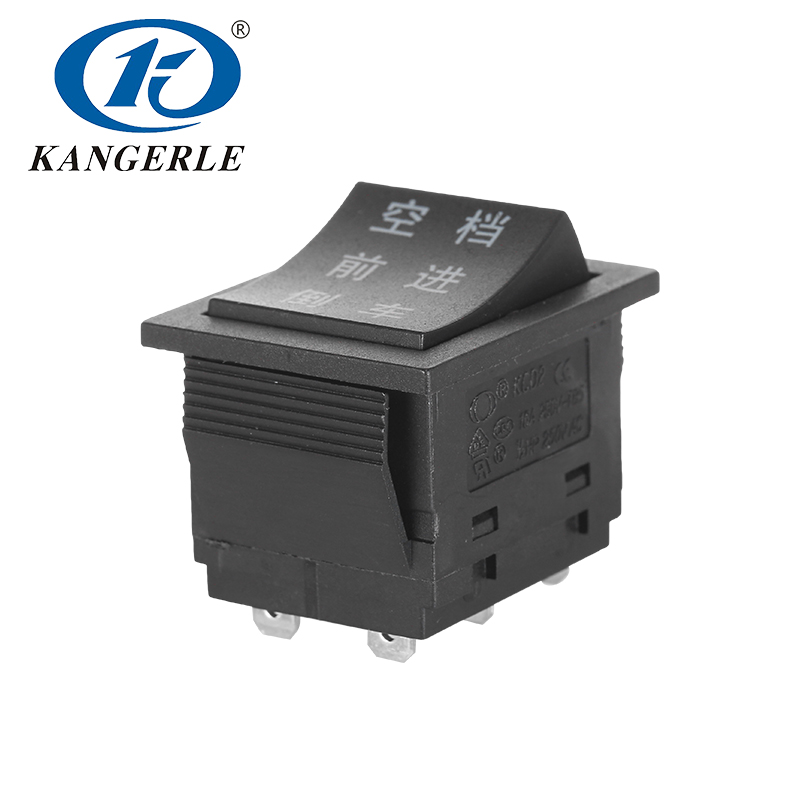

Waterproof Rocker Switch KCD2-23F2

A rocker switch is also called a boat switch because its button resembles the shape of a small boat. Its contacts are divided into single-pole single-throw and double-pole double-throw, etc. There are normal type, waterproof type and illuminated type of our rocker switches. They have a high current load capacity and are equipped with different types of terminals. The rocker switch’s intuitive design and easy-to-use mechanism have made it popular for many applications.



Product Series: Waterproof rocker switch
Application: Electric pancake maker, water dispenser, nebulizer, power tool, oxygen concentrator, industrial equipment, pet appliance, electric fish scaler, hair dryer, etc.

Waterproof Rocker Switch KCD2-23F2

A rocker switch is also called a boat switch because its button resembles the shape of a small boat. Its contacts are divided into single-pole single-throw and double-pole double-throw, etc. There are normal type, waterproof type and illuminated type of our rocker switches. They have a high current load capacity and are equipped with different types of terminals. The rocker switch’s intuitive design and easy-to-use mechanism have made it popular for many applications.



Product Series: Waterproof rocker switch
Application: Electric pancake maker, water dispenser, nebulizer, power tool, oxygen concentrator, industrial equipment, pet appliance, electric fish scaler, hair dryer, etc.

Waterproof Rocker Switch KCD2-23F2

A rocker switch is also called a boat switch because its button resembles the shape of a small boat. Its contacts are divided into single-pole single-throw and double-pole double-throw, etc. There are normal type, waterproof type and illuminated type of our rocker switches. They have a high current load capacity and are equipped with different types of terminals. The rocker switch’s intuitive design and easy-to-use mechanism have made it popular for many applications.



Product Series: Waterproof rocker switch
Application: Electric pancake maker, water dispenser, nebulizer, power tool, oxygen concentrator, industrial equipment, pet appliance, electric fish scaler, hair dryer, etc.

Waterproof Rocker Switch KCD2-23F2

A rocker switch is also called a boat switch because its button resembles the shape of a small boat. Its contacts are divided into single-pole single-throw and double-pole double-throw, etc. There are normal type, waterproof type and illuminated type of our rocker switches. They have a high current load capacity and are equipped with different types of terminals. The rocker switch’s intuitive design and easy-to-use mechanism have made it popular for many applications.



Product Series: Waterproof rocker switch
Application: Electric pancake maker, water dispenser, nebulizer, power tool, oxygen concentrator, industrial equipment, pet appliance, electric fish scaler, hair dryer, etc.

PRODUCT DETAIL

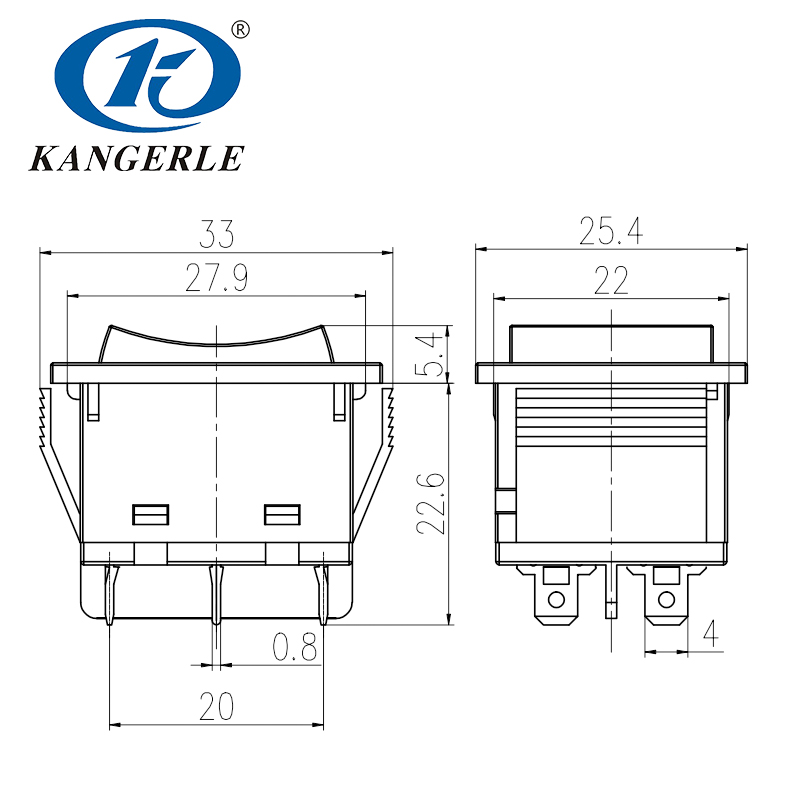

Waterproof Rocker Switch KCD2-23F2插图

Chinakel Waterproof Rocker Switch Feature

Rated Load 0.1-20A 125/250VAC
Temperature -40-100°C
Circuit 1P1T/1P2T//2P2T/…
Contact Resistance ≤50mΩ
Insulation Resistance ≥100MΩ
Withstand Voltage 2500V 50HZ/min
Protection Level IP44/IP65
Mechanical Life ≥50,000 cycles
Electrical Life ≥10,000 cycles
Certification RoHS/CQC/UL
