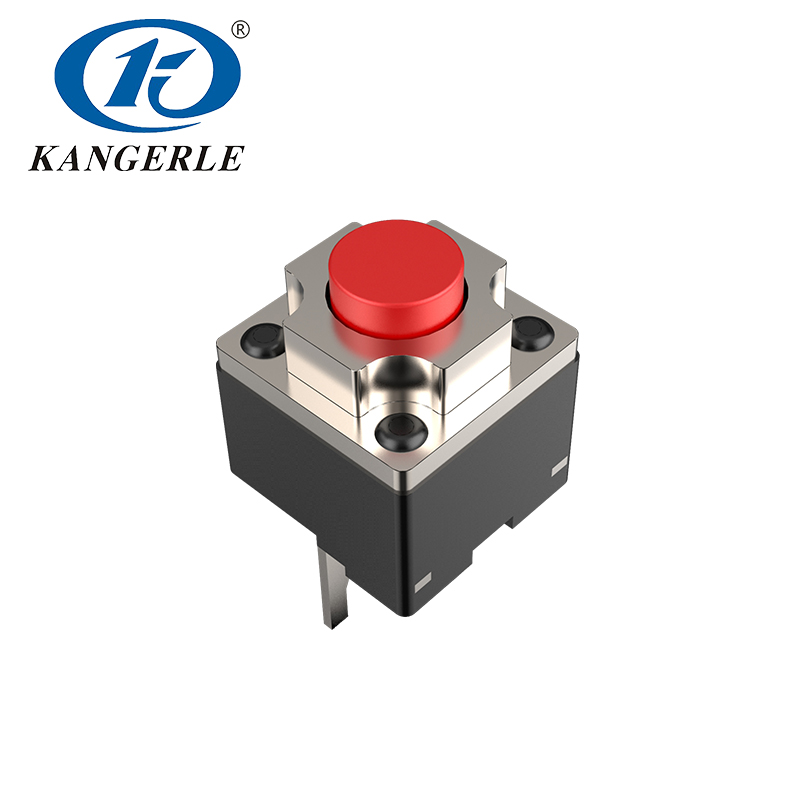

The KEL-E009-3 is a tactile switch featuring high reliability and long lifespan. Rated for 50mA/12VDC with SPST-NO circuit design, it offers contact resistance ≤100MΩ and insulation resistance ≥100MΩ. Operating force is 70±20gf, mechanical life ≥3 million cycles, and withstand voltage up to AC 250V/50Hz. Operating temperature ranges from -20 to 70°C, ideal for control buttons in various electronic devices.
Product Series: KEL-E Series.
Applications: Mouse, keyboard, etc.
The KEL-E009-3 is a tactile switch featuring high reliability and long lifespan. Rated for 50mA/12VDC with SPST-NO circuit design, it offers contact resistance ≤100MΩ and insulation resistance ≥100MΩ. Operating force is 70±20gf, mechanical life ≥3 million cycles, and withstand voltage up to AC 250V/50Hz. Operating temperature ranges from -20 to 70°C, ideal for control buttons in various electronic devices.
Product Series: KEL-E Series.
Applications: Mouse, keyboard, etc.
The KEL-E009-3 is a tactile switch featuring high reliability and long lifespan. Rated for 50mA/12VDC with SPST-NO circuit design, it offers contact resistance ≤100MΩ and insulation resistance ≥100MΩ. Operating force is 70±20gf, mechanical life ≥3 million cycles, and withstand voltage up to AC 250V/50Hz. Operating temperature ranges from -20 to 70°C, ideal for control buttons in various electronic devices.
Product Series: KEL-E Series.
Applications: Mouse, keyboard, etc.
The KEL-E009-3 is a tactile switch featuring high reliability and long lifespan. Rated for 50mA/12VDC with SPST-NO circuit design, it offers contact resistance ≤100MΩ and insulation resistance ≥100MΩ. Operating force is 70±20gf, mechanical life ≥3 million cycles, and withstand voltage up to AC 250V/50Hz. Operating temperature ranges from -20 to 70°C, ideal for control buttons in various electronic devices.
Product Series: KEL-E Series.
Applications: Mouse, keyboard, etc.
| Rated Load | 50mA 12VDC |
| Temperature | -20-70°C |
| Operating Force | 70±20gf |
| Circuit | SPST-NO |
| Contact Resistance | ≤ 100MΩ |
| Insulation Resistance | ≥ 100MΩ |
| Mechanical Life | ≥ 3,000,000 cycles |
| Withstand Voltage | AC 250V 50HZ |
For inquries about our products or pricelist, please leave your email to us and we will be in touch within 24 hours
