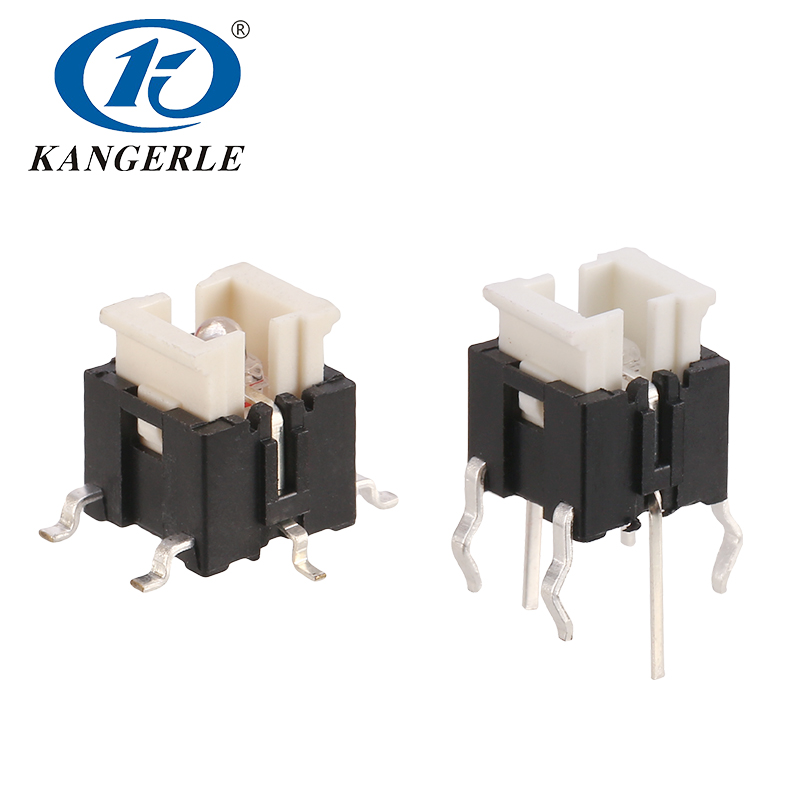

LED tact switch 6x6x7.2 series

A LED tact switch, also known as an illuminated tactile switch, is a type of electronic switch that combines the functionality of a tactile switch with a built-in LED. It is designed to provide both tactile feedback and visual indication when pressed. There is a wide range of LED tact switches from KANGERLE. We also have many kinds of structures for switches, such as top actuated type, side actuated type, SMD and DIP type, etc,. Switch’ s button can be spray-paint, plated, lettered and enchased according to your needs. Various LED colors could be available.



Product Series: LED tact switch 6x6x7.2 series
Switch Applications: Home appliances, communication devices, audiovisual products, remote controls, security products, toys, fitness equipment, medical instruments, electronic devices, and other fields.

LED tact switch 6x6x7.2 series

A LED tact switch, also known as an illuminated tactile switch, is a type of electronic switch that combines the functionality of a tactile switch with a built-in LED. It is designed to provide both tactile feedback and visual indication when pressed. There is a wide range of LED tact switches from KANGERLE. We also have many kinds of structures for switches, such as top actuated type, side actuated type, SMD and DIP type, etc,. Switch’ s button can be spray-paint, plated, lettered and enchased according to your needs. Various LED colors could be available.



Product Series: LED tact switch 6x6x7.2 series
Switch Applications: Home appliances, communication devices, audiovisual products, remote controls, security products, toys, fitness equipment, medical instruments, electronic devices, and other fields.

LED tact switch 6x6x7.2 series

A LED tact switch, also known as an illuminated tactile switch, is a type of electronic switch that combines the functionality of a tactile switch with a built-in LED. It is designed to provide both tactile feedback and visual indication when pressed. There is a wide range of LED tact switches from KANGERLE. We also have many kinds of structures for switches, such as top actuated type, side actuated type, SMD and DIP type, etc,. Switch’ s button can be spray-paint, plated, lettered and enchased according to your needs. Various LED colors could be available.



Product Series: LED tact switch 6x6x7.2 series
Switch Applications: Home appliances, communication devices, audiovisual products, remote controls, security products, toys, fitness equipment, medical instruments, electronic devices, and other fields.

LED tact switch 6x6x7.2 series

A LED tact switch, also known as an illuminated tactile switch, is a type of electronic switch that combines the functionality of a tactile switch with a built-in LED. It is designed to provide both tactile feedback and visual indication when pressed. There is a wide range of LED tact switches from KANGERLE. We also have many kinds of structures for switches, such as top actuated type, side actuated type, SMD and DIP type, etc,. Switch’ s button can be spray-paint, plated, lettered and enchased according to your needs. Various LED colors could be available.



Product Series: LED tact switch 6x6x7.2 series
Switch Applications: Home appliances, communication devices, audiovisual products, remote controls, security products, toys, fitness equipment, medical instruments, electronic devices, and other fields.

PRODUCT DETAIL

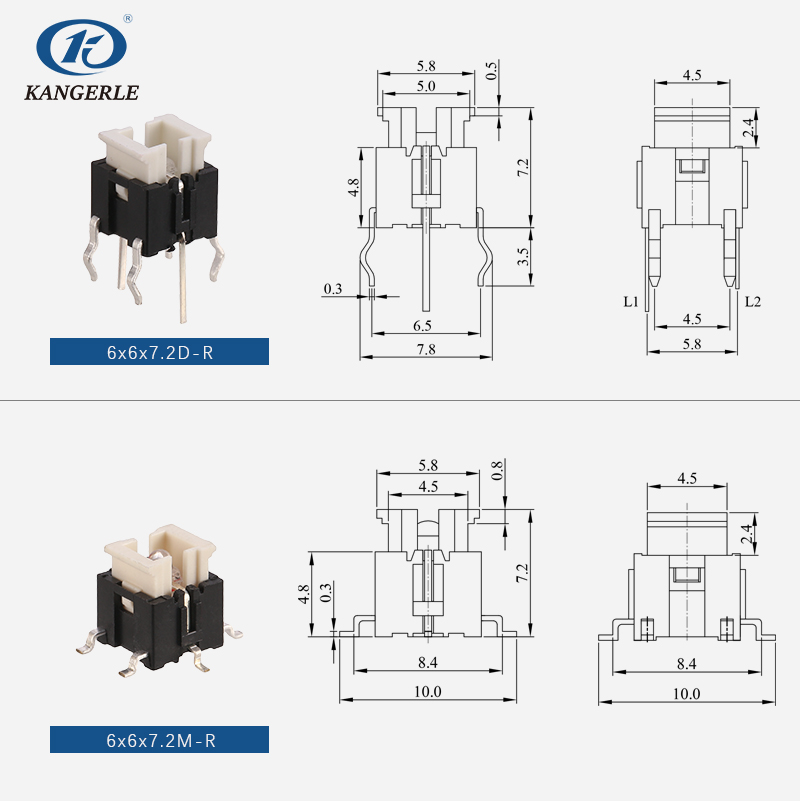

LED tact switch 6x6x7.2 series插图

Chinakel LED Tact Switch Feature

Rated Load 50mA DC12VMAX ; 0.1m A 5V D C MIN



Temperature -20~70℃
Operating Force 160±50gf/250±100gf



Circuit NO
Contact Resistance ≤100mΩ
Insulation Resistance ≥100MΩ(DC 500V)
LED Color R/G/B/Y/W/P/RY/RG/RB/YG/RGB…
LED Current ≤20mA
Electrical Life ≥100,000 cycles
Certification RoHS
