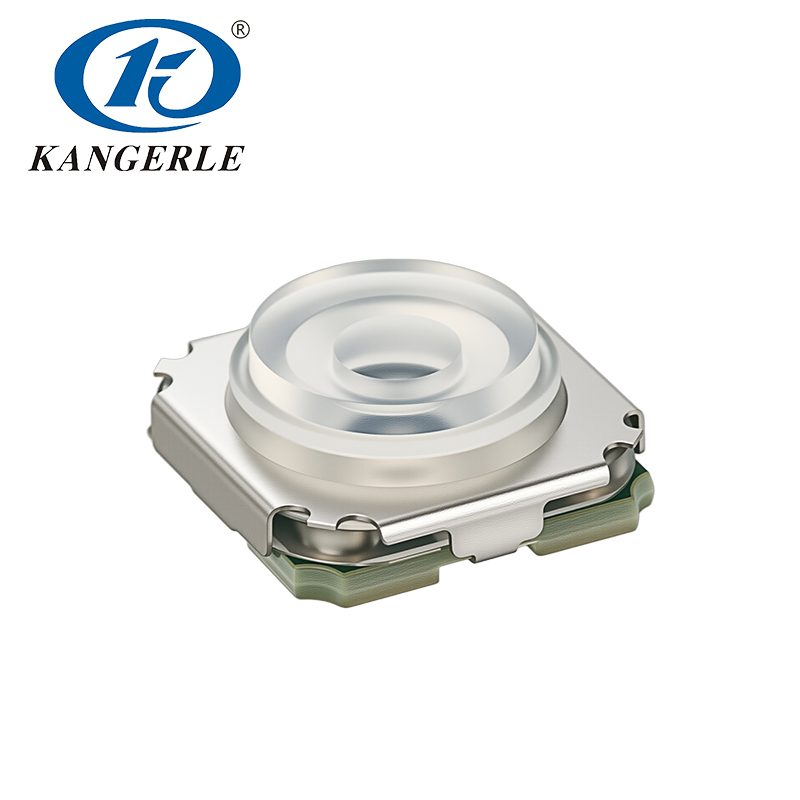

The KEL-E037 tact switch features high 680±100gf operating force with 0.75±0.2mm travel. Rated 50mA/28VDC, ≤50mΩ contact resistance, ≥100MΩ insulation resistance, and 100K mechanical cycles. Withstands 250V/50Hz(1min). Ideal for industrial controls requiring heavy-duty actuation.
Product Series: KEL-E Series.
Applications: Car centre console, Steering wheel, Power windows, Tailgate, etc.
The KEL-E037 tact switch features high 680±100gf operating force with 0.75±0.2mm travel. Rated 50mA/28VDC, ≤50mΩ contact resistance, ≥100MΩ insulation resistance, and 100K mechanical cycles. Withstands 250V/50Hz(1min). Ideal for industrial controls requiring heavy-duty actuation.
Product Series: KEL-E Series.
Applications: Car centre console, Steering wheel, Power windows, Tailgate, etc.
The KEL-E037 tact switch features high 680±100gf operating force with 0.75±0.2mm travel. Rated 50mA/28VDC, ≤50mΩ contact resistance, ≥100MΩ insulation resistance, and 100K mechanical cycles. Withstands 250V/50Hz(1min). Ideal for industrial controls requiring heavy-duty actuation.
Product Series: KEL-E Series.
Applications: Car centre console, Steering wheel, Power windows, Tailgate, etc.
The KEL-E037 tact switch features high 680±100gf operating force with 0.75±0.2mm travel. Rated 50mA/28VDC, ≤50mΩ contact resistance, ≥100MΩ insulation resistance, and 100K mechanical cycles. Withstands 250V/50Hz(1min). Ideal for industrial controls requiring heavy-duty actuation.
Product Series: KEL-E Series.
Applications: Car centre console, Steering wheel, Power windows, Tailgate, etc.

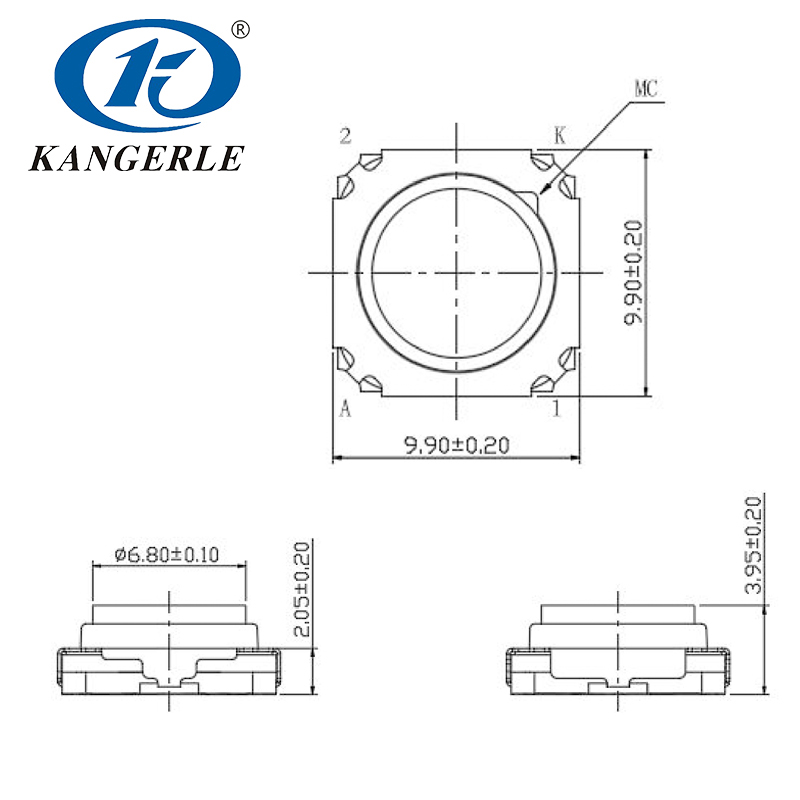

| Rated Load | 50mA DC28V |
| Travel Distance | 0.75±0.2mm |
| Operating Force | 680±100gf |
| Contact Resistance | ≤ 50mΩ |
| Insulation Resistance | ≥ 100MΩ |
| Mechanical Life | 100,000 Cycles |
| Withstand Voltage | 250V 50HZ 1min |
