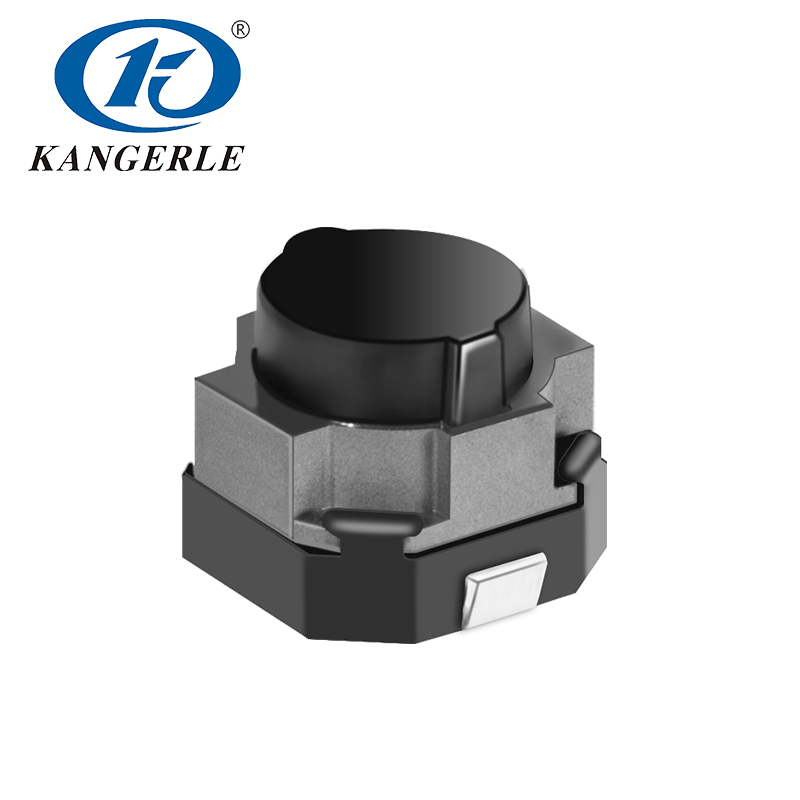

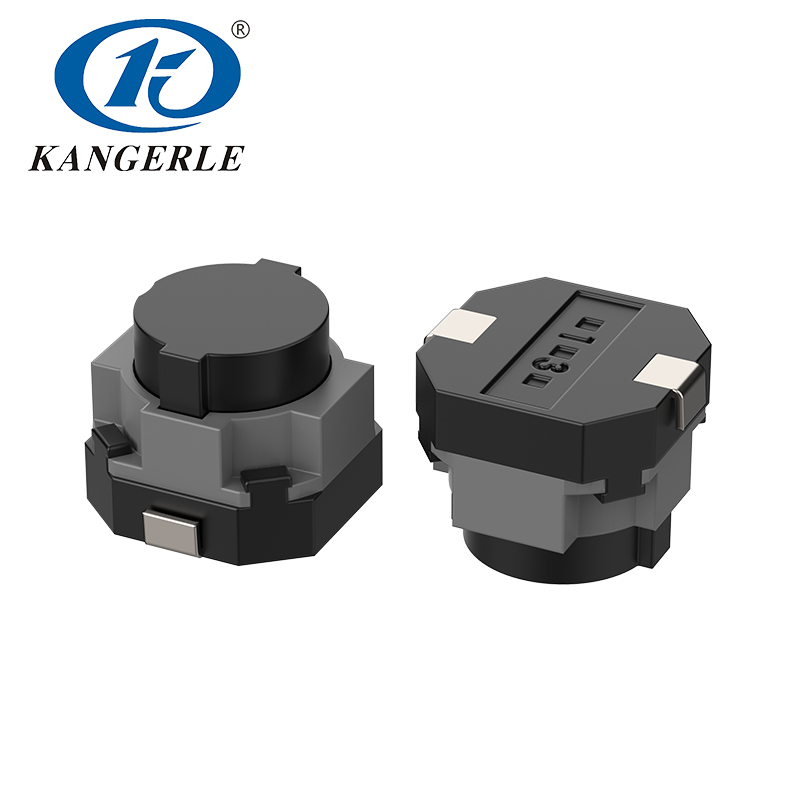

The KEL-E035 tact switch offers 1.2±0.2mm travel with optional 250/300/350±50gf operating force. Rated 50mA/12VDC, ≤200mΩ contact resistance, ≥100MΩ insulation resistance, and 200K mechanical cycles. Withstands 250V/50Hz(1min). Ideal for precision electronics requiring multiple force options.
Product Series: KEL-E Series.
Applications: Car centre console, Steering wheel, Power windows, Tailgate, etc.
The KEL-E035 tact switch offers 1.2±0.2mm travel with optional 250/300/350±50gf operating force. Rated 50mA/12VDC, ≤200mΩ contact resistance, ≥100MΩ insulation resistance, and 200K mechanical cycles. Withstands 250V/50Hz(1min). Ideal for precision electronics requiring multiple force options.
Product Series: KEL-E Series.
Applications: Car centre console, Steering wheel, Power windows, Tailgate, etc.
The KEL-E035 tact switch offers 1.2±0.2mm travel with optional 250/300/350±50gf operating force. Rated 50mA/12VDC, ≤200mΩ contact resistance, ≥100MΩ insulation resistance, and 200K mechanical cycles. Withstands 250V/50Hz(1min). Ideal for precision electronics requiring multiple force options.
Product Series: KEL-E Series.
Applications: Car centre console, Steering wheel, Power windows, Tailgate, etc.
The KEL-E035 tact switch offers 1.2±0.2mm travel with optional 250/300/350±50gf operating force. Rated 50mA/12VDC, ≤200mΩ contact resistance, ≥100MΩ insulation resistance, and 200K mechanical cycles. Withstands 250V/50Hz(1min). Ideal for precision electronics requiring multiple force options.
Product Series: KEL-E Series.
Applications: Car centre console, Steering wheel, Power windows, Tailgate, etc.
| Rated Load | 50mA DC12V MAX |
| Travel Distance | 1.2±0.2mm |
| Operating Force | 250&300&350±50gf |
| Contact Resistance | ≤ 200mΩ |
| Insulation Resistance | ≥100MΩ 250VDC MAX |
| Mechanical Life | 200,000 Cycles |
| Withstand Voltage | 250V 50HZ 1Min MAX |
