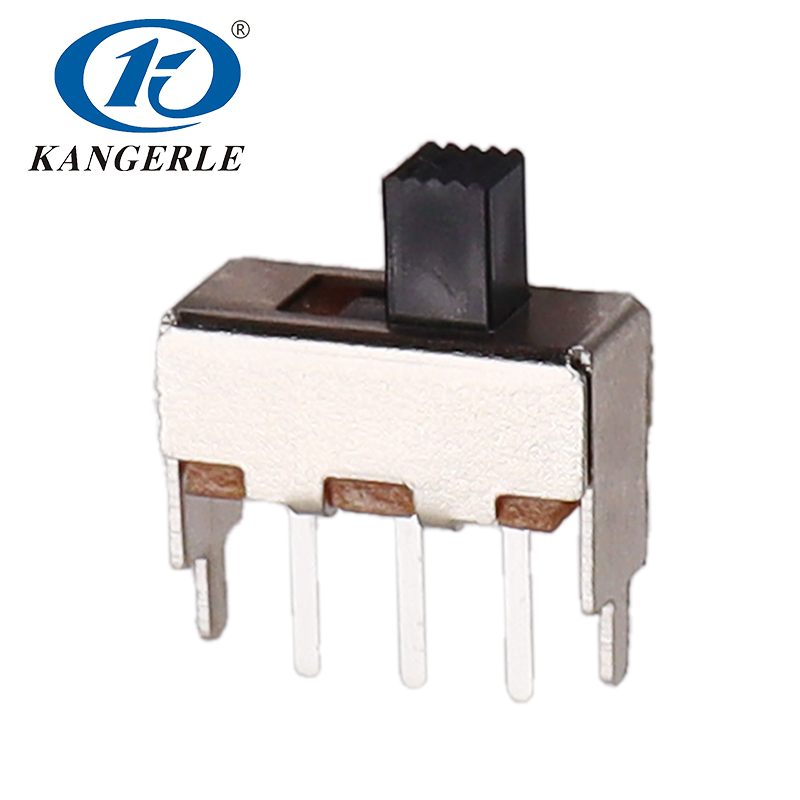

slide switch SS12F58G4

Slide switch is a type of electrical switch used to control the flow of electricity in a circuit. It is called a slide switch because it operates by sliding a lever or actuator back and forth to change its state. KANGERLE slide switch typically has two or more positions, which are used to establish different electrical connections. There are different dimensions and structures of slide switches for your selection. Customization could be available.



Product Series: Slide Switch
Application: Electric fan, hair dryer, power tool, radio, auto parts, camera, toy, security system, communication device, etc.

slide switch SS12F58G4

Slide switch is a type of electrical switch used to control the flow of electricity in a circuit. It is called a slide switch because it operates by sliding a lever or actuator back and forth to change its state. KANGERLE slide switch typically has two or more positions, which are used to establish different electrical connections. There are different dimensions and structures of slide switches for your selection. Customization could be available.



Product Series: Slide Switch
Application: Electric fan, hair dryer, power tool, radio, auto parts, camera, toy, security system, communication device, etc.

slide switch SS12F58G4

Slide switch is a type of electrical switch used to control the flow of electricity in a circuit. It is called a slide switch because it operates by sliding a lever or actuator back and forth to change its state. KANGERLE slide switch typically has two or more positions, which are used to establish different electrical connections. There are different dimensions and structures of slide switches for your selection. Customization could be available.



Product Series: Slide Switch
Application: Electric fan, hair dryer, power tool, radio, auto parts, camera, toy, security system, communication device, etc.

slide switch SS12F58G4

Slide switch is a type of electrical switch used to control the flow of electricity in a circuit. It is called a slide switch because it operates by sliding a lever or actuator back and forth to change its state. KANGERLE slide switch typically has two or more positions, which are used to establish different electrical connections. There are different dimensions and structures of slide switches for your selection. Customization could be available.



Product Series: Slide Switch
Application: Electric fan, hair dryer, power tool, radio, auto parts, camera, toy, security system, communication device, etc.

PRODUCT DETAIL

Chinakel Slide Switch Feature

Rated Load 0.3~3A DC50V
Temperature -16-60℃
Operating Force 50±25gf/250±100gf/300±100gf/…
Circuit SPDT/SPST NO/SPST NC
Contact Resistance ≤50mΩ
Insulation Resistance ≥100MΩ
Withstand Voltage ≥500VAC
Electrical Life ≥10,000 cycles
Certification RoHS
