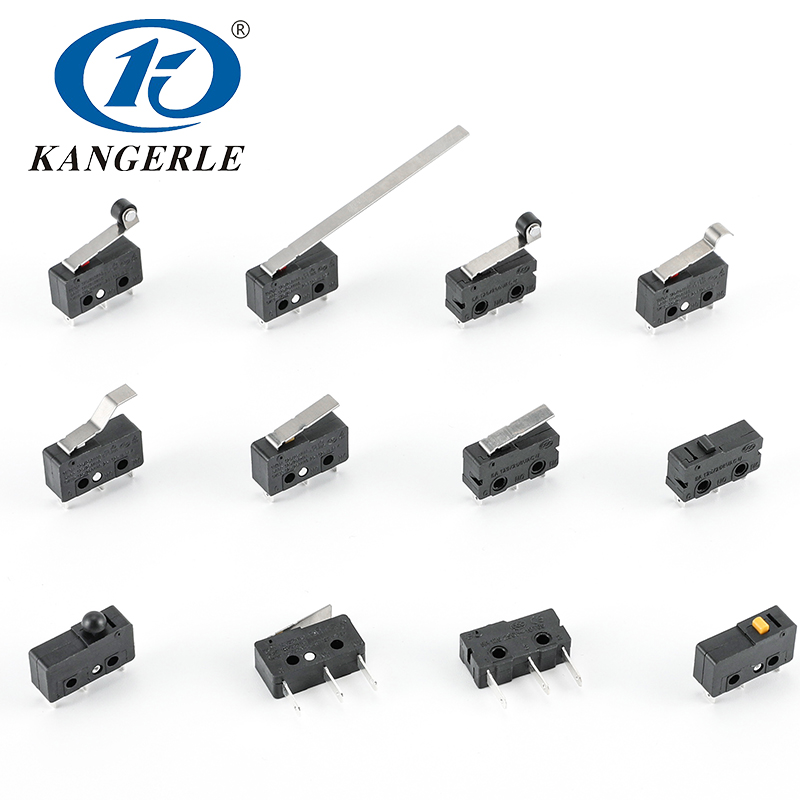

Micro switch KW12 is compact in size, which has the characteristics of micro contact gap, snap action, high sensitivity, and tiny operation travel. This series of switches are equipped with a variety of movable arms. Moreover, a wide range of operating force and various types of wiring terminals are available. This product also have different load ranges to choose from. Global safety certification guarantees stable and reliable quality.

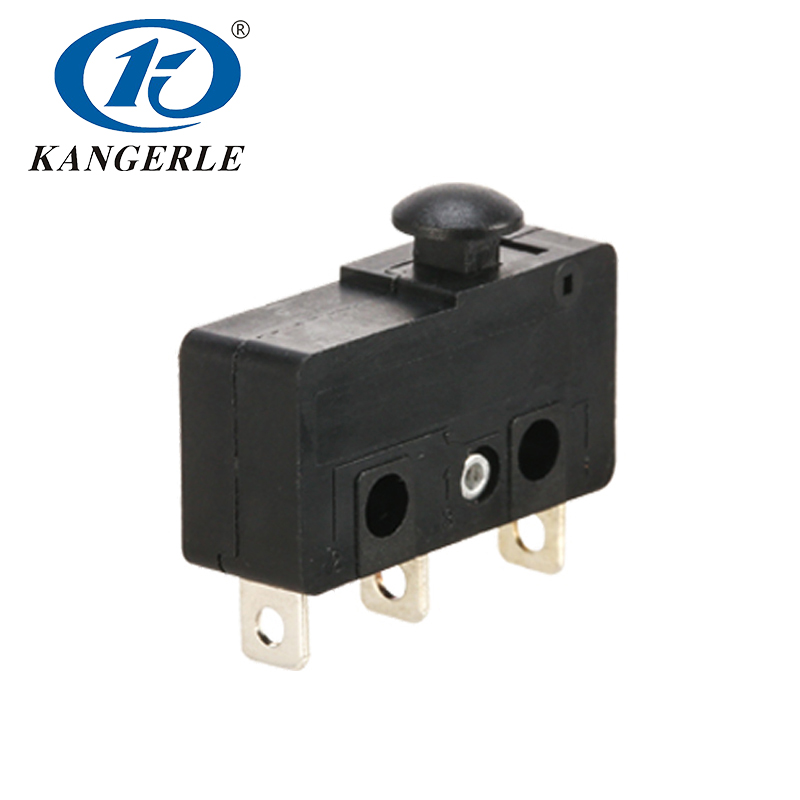

Product Series: KW12 Micro Switch
Application: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.
Micro switch KW12 is compact in size, which has the characteristics of micro contact gap, snap action, high sensitivity, and tiny operation travel. This series of switches are equipped with a variety of movable arms. Moreover, a wide range of operating force and various types of wiring terminals are available. This product also have different load ranges to choose from. Global safety certification guarantees stable and reliable quality.
Product Series: KW12 Micro Switch
Application: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.
Micro switch KW12 is compact in size, which has the characteristics of micro contact gap, snap action, high sensitivity, and tiny operation travel. This series of switches are equipped with a variety of movable arms. Moreover, a wide range of operating force and various types of wiring terminals are available. This product also have different load ranges to choose from. Global safety certification guarantees stable and reliable quality.
Product Series: KW12 Micro Switch
Application: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.
Micro switch KW12 is compact in size, which has the characteristics of micro contact gap, snap action, high sensitivity, and tiny operation travel. This series of switches are equipped with a variety of movable arms. Moreover, a wide range of operating force and various types of wiring terminals are available. This product also have different load ranges to choose from. Global safety certification guarantees stable and reliable quality.
Product Series: KW12 Micro Switch
Application: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.

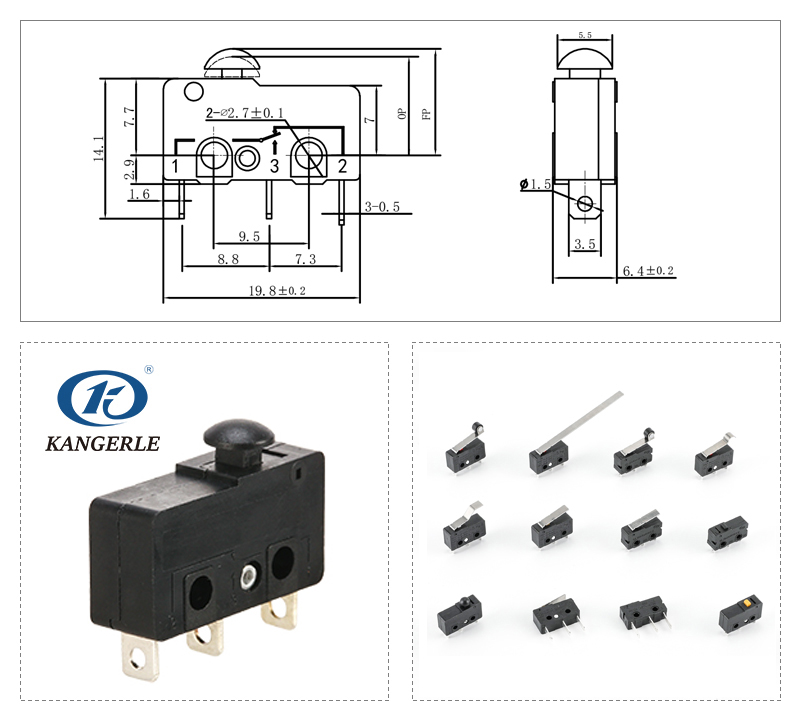

| Rated Load | 0.1-10A 125/250VAC；0.1-5A 36VDC |
| Temperature | 25T125 |
| Operating Force | 170±30gf |
| Terminal Type | solder terminal/110# quick-connect terminal/PCB terminal … |
| Lever Type | no lever/short lever/middle lever/long lever/arc lever/roller lever… |
| Circuit | SPDT/SPST NO/SPST NC |
| Operating Speed | 0.1mm-1m/s |
| Operating Frequency | mechanical 60 cycles/min；electrical 15 cycles/min |
| Contact Resistance | ≤50mΩ (initial value) |
| Insulation Resistance | ≥100MΩ(500VDC,1min) |
| Withstand Voltage | ≥1500VAC,50/60HZ,1min |
| Electrical Life | ≥10,000/50,000 times |
| Mechanical Life | ≥1,000,000 times |
| Certification | UL/TUV/CQC/CE |
