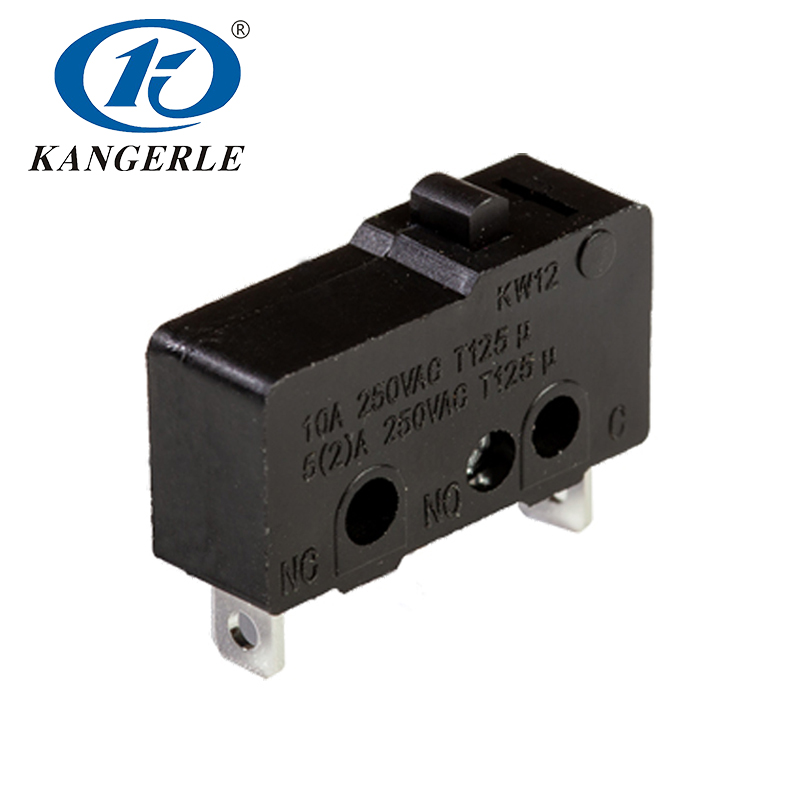

Normally Closed Micro Switch 2 Pin

Micro switch KW12-3B-A is a normally closed switch, which means it remains in a closed (on) state under normal conditions, allowing electrical current to flow through the circuit. This series of switches are equipped with a variety of movable levers and different types of terminals. As basic medium micro switches, KW12 series is widely used in home appliances.  Kangerle supports customization, and global safety certification guarantees stable and reliable quality.



Product Series: KW12 Micro Switch
Application: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.

Normally Closed Micro Switch 2 Pin

Micro switch KW12-3B-A is a normally closed switch, which means it remains in a closed (on) state under normal conditions, allowing electrical current to flow through the circuit. This series of switches are equipped with a variety of movable levers and different types of terminals. As basic medium micro switches, KW12 series is widely used in home appliances.  Kangerle supports customization, and global safety certification guarantees stable and reliable quality.



Product Series: KW12 Micro Switch
Application: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.

Normally Closed Micro Switch 2 Pin

Micro switch KW12-3B-A is a normally closed switch, which means it remains in a closed (on) state under normal conditions, allowing electrical current to flow through the circuit. This series of switches are equipped with a variety of movable levers and different types of terminals. As basic medium micro switches, KW12 series is widely used in home appliances.  Kangerle supports customization, and global safety certification guarantees stable and reliable quality.



Product Series: KW12 Micro Switch
Application: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.

Normally Closed Micro Switch 2 Pin

Micro switch KW12-3B-A is a normally closed switch, which means it remains in a closed (on) state under normal conditions, allowing electrical current to flow through the circuit. This series of switches are equipped with a variety of movable levers and different types of terminals. As basic medium micro switches, KW12 series is widely used in home appliances.  Kangerle supports customization, and global safety certification guarantees stable and reliable quality.



Product Series: KW12 Micro Switch
Application: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.

PRODUCT DETAIL

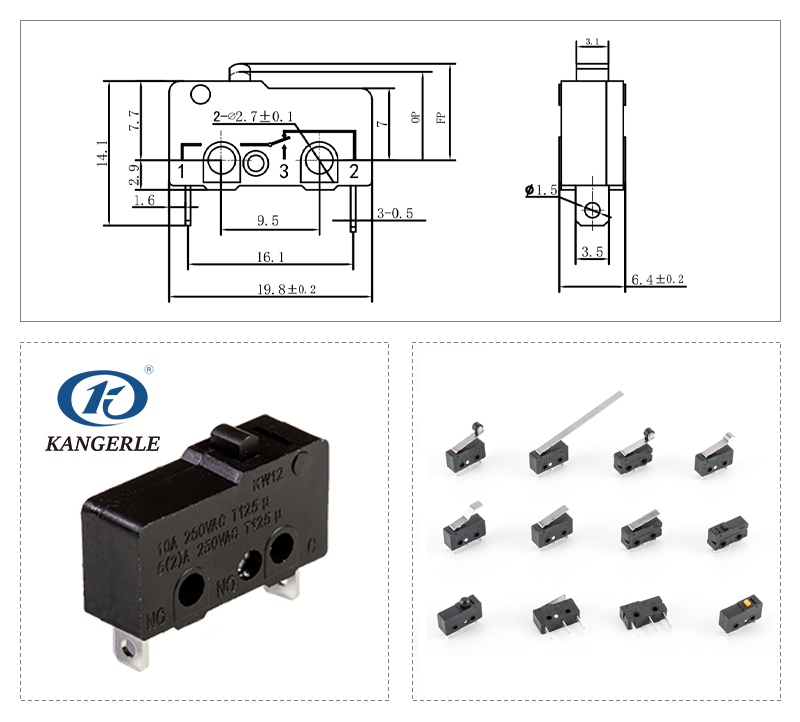

Micro switch KW12-3B-A

Chinakel KW12 Micro Switch Feature

Rated Load 0.1-10A 125/250VAC;0.1-5A 36VDC
Temperature 25T125
Operating Force 170±30gf
Terminal Type solder terminal/110# quick-connect terminal/PCB terminal …
Lever Type no lever/short lever/middle lever/long lever/arc lever/roller lever…
Circuit SPDT/SPST NO/SPST NC
Operating Speed 0.1mm-1m/s
Operating Frequency mechanical 60 cycles/min;electrical 15 cycles/min
Contact Resistance ≤50mΩ (initial value)
Insulation Resistance ≥100MΩ(500VDC,1min)
Withstand Voltage ≥1500VAC,50/60HZ,1min
Electrical Life ≥10,000/50,000 times
Mechanical Life ≥1,000,000 times
Certification UL/TUV/CQC/CE
