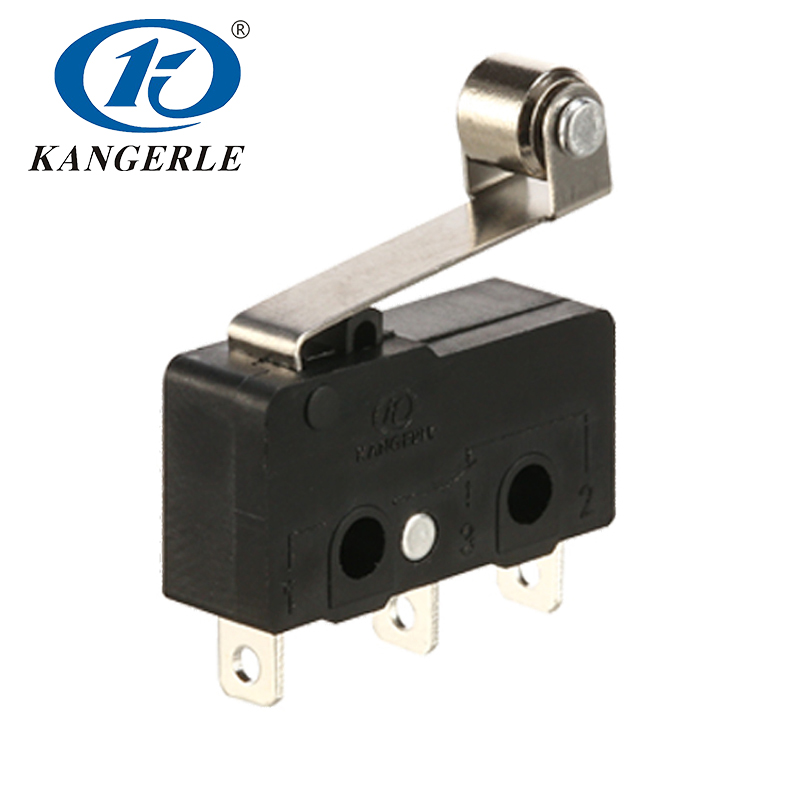

Micro switch KW12-3A-6A metal roller

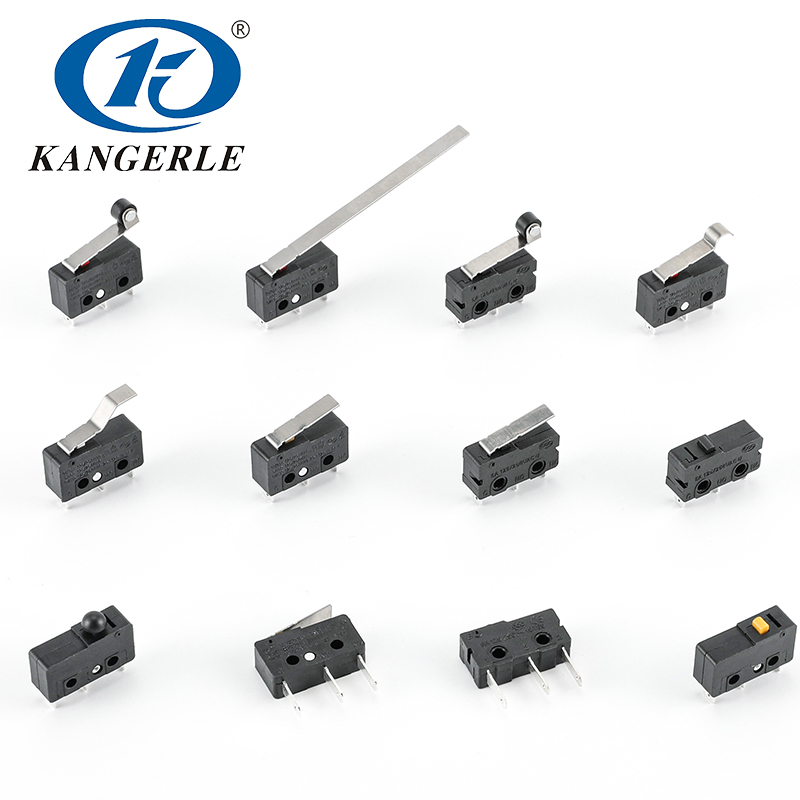

Micro switch KW12 is compact in size, which has the characteristics of micro contact gap, snap action, high sensitivity, and tiny operation travel. This series of switches are equipped with a variety of movable arms. Moreover, a wide range of operating force and various types of wiring terminals are available. This product also have different load ranges to choose from. Global safety certification guarantees stable and reliable quality.



Product Series: KW12 Micro Switch
Application: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.

Micro switch KW12-3A-6A metal roller

Micro switch KW12 is compact in size, which has the characteristics of micro contact gap, snap action, high sensitivity, and tiny operation travel. This series of switches are equipped with a variety of movable arms. Moreover, a wide range of operating force and various types of wiring terminals are available. This product also have different load ranges to choose from. Global safety certification guarantees stable and reliable quality.



Product Series: KW12 Micro Switch
Application: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.

Micro switch KW12-3A-6A metal roller

Micro switch KW12 is compact in size, which has the characteristics of micro contact gap, snap action, high sensitivity, and tiny operation travel. This series of switches are equipped with a variety of movable arms. Moreover, a wide range of operating force and various types of wiring terminals are available. This product also have different load ranges to choose from. Global safety certification guarantees stable and reliable quality.



Product Series: KW12 Micro Switch
Application: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.

Micro switch KW12-3A-6A metal roller

Micro switch KW12 is compact in size, which has the characteristics of micro contact gap, snap action, high sensitivity, and tiny operation travel. This series of switches are equipped with a variety of movable arms. Moreover, a wide range of operating force and various types of wiring terminals are available. This product also have different load ranges to choose from. Global safety certification guarantees stable and reliable quality.



Product Series: KW12 Micro Switch
Application: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.

PRODUCT DETAIL

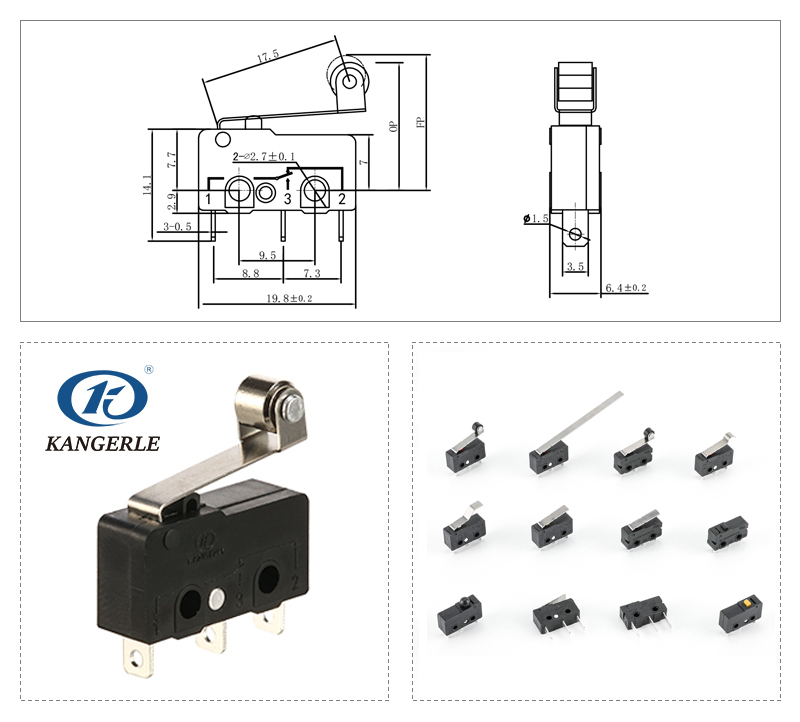

Micro switch KW12-3A-6A metal roller插图

Chinakel KW12 Micro Switch Feature

Rated Load 0.1-10A 125/250VAC;0.1-5A 36VDC
Temperature 25T125
Operating Force 170±30gf
Terminal Type solder terminal/110# quick-connect terminal/PCB terminal …
Lever Type no lever/short lever/middle lever/long lever/arc lever/roller lever…
Circuit SPDT/SPST NO/SPST NC
Operating Speed 0.1mm-1m/s
Operating Frequency mechanical 60 cycles/min;electrical 15 cycles/min
Contact Resistance ≤50mΩ (initial value)
Insulation Resistance ≥100MΩ(500VDC,1min)
Withstand Voltage ≥1500VAC,50/60HZ,1min
Electrical Life ≥10,000/50,000 次
Mechanical Life ≥1,000,000 次
Certification UL/TUV/CQC/CE
