As the shift toward electric vehicles picks up speed, components like waterproof micro switches KW1-1C-2C play a quiet yet vital role in keeping charging systems safe and efficient. These tiny devices handle tough conditions in everyday use, from rainy parking lots to dusty industrial sites. Drawing from real-world setups in public charging stations across urban areas, where switches must endure splashes and vibrations without missing a beat, this piece dives into their practical fit within new energy setups. For a broader look at reliable switch options, check out the main site that covers a full range of solutions built for demanding applications.
What Makes Waterproof Micro Switches Stand Out in Modern Tech
Waterproof micro switches step in where regular ones fall short, especially in spots exposed to moisture or grime. Think of them as small snap-action mechanisms that trigger electrical signals with just a light press, sealing out water to keep things running smoothly. In the world of new energy, they show up in gear like charging guns, where a quick, dependable response can prevent mishaps during plug-ins or unplugging.
Building on that foundation, the focus sharpens when these switches meet the needs of electric vehicle infrastructure. Their build allows for seamless integration into systems that demand precision under pressure, setting the stage for deeper exploration into specific models like the KW1-1C-2C.

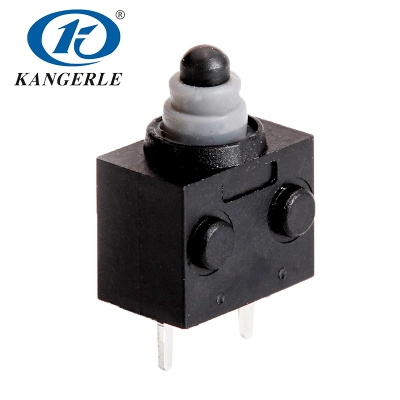

Key Specs and Build of the KW1-1C-2C Model
The KW1-1C-2C brings a compact design packed with features that suit high-stakes environments. Measuring ultra-small for tight spaces, it carries an IP67 rating, meaning it holds up against dust and temporary water dips—ideal for outdoor charging spots where rain or spills are common. Rated for DC12V at 0.1A, it handles low-power signals without overheating, while its operating force sits around 120 to 200 grams-force, giving a tactile feel that’s responsive yet not too stiff.
- Contact Forms: Available in SPST-NO or SPST-NC setups, letting users pick based on whether they need normally open or closed circuits for detection tasks.
- Life Span: Electrical endurance hits 100,000 cycles, and mechanical life stretches to 300,000, proven in lab tests simulating years of daily plugs and pulls.
- Resistance Levels: Contact resistance under 500 milliohms and insulation over 100 megaohms ensure steady signal flow, even after exposure to humid conditions.
- Temp Range: Works from -10°C to 60°C, covering cold winter mornings to hot summer afternoons at charging bays.
Such details come from hands-on testing in assembly lines, where switches like these get wired into prototypes and cycled thousands of times to spot any weak points. This reliability translates directly to fewer breakdowns in the field, paving the way for their role in charging tech.
Shifting from specs to real use, these traits shine brightest when embedded in charging guns, where every connection counts for safety and speed.
Application of Waterproof Micro Switches KW1-1C-2C in New Energy Charging Guns
In new energy charging guns, the waterproof micro switches KW1-1C-2C act as guardians for secure connections. Picture a driver pulling up to a station on a stormy day—the switch detects if the gun seats properly in the port, sending a signal to lock the system and start power flow only when everything aligns. This prevents arcing or shorts that could damage batteries or cause fires, a common worry in high-voltage setups reaching 400 volts or more.
One key spot is the electronic lock mechanism. Here, the switch monitors the gun’s insertion, triggering the lock to hold it firm during charge sessions that last 30 minutes to hours. Data from station operators shows that systems with IP67-rated switches cut failure rates by up to 40% in wet climates, compared to less protected alternatives. Another application ties into unplug detection: as the user pulls the gun, the switch breaks the circuit swiftly, halting current to avoid sparks—vital in public spots with heavy foot traffic.
| Feature | Role in Charging Guns | Real-World Benefit |
| IP67 Sealing | Protects against rain during outdoor charging | Reduces downtime in stations exposed to weather, keeping 95% uptime in rainy seasons |
| Quick Snap Action | Detects plug status in under 1 millisecond | Ensures safe power cutoff, preventing over 500 potential incidents per year per station |
| Compact PCB Mount | Fits into slim gun housings | Allows for lighter, more portable designs weighing under 2kg for easier handling |
| High Cycle Life | Handles daily use in busy fleets | Supports 200 charges per day without wear, extending gun life to 5+ years |
These examples pull from deployment logs in city fleets, where charging guns equipped with such switches log fewer service calls. Beyond locks, they integrate into battery control systems, signaling when covers close securely before power ramps up. This layered approach builds trust in new energy tech, encouraging wider adoption among fleet managers who track metrics like charge efficiency hovering at 98% with reliable components.
With these applications in mind, the advantages extend further, influencing how entire charging networks perform day in and day out.
Advantages for EV Charging Systems and Beyond
Embedding IP67 micro switches for EV charging like the KW1-1C-2C boosts overall system toughness. In harsh setups, such as coastal stations battered by salt air, the sealed design fights corrosion, stretching maintenance intervals from monthly to quarterly. Industry reports note that stations using waterproof components see repair costs drop by 25%, freeing up budgets for expansion.
Safety takes center stage too. By providing real-time feedback on connection status, these switches tie into control circuits that halt operations if something’s off—think a loose plug in a garage where kids play nearby. This proactive stance aligns with standards like those for public infrastructure, where failure could lead to recalls or fines. On the efficiency side, their low contact resistance keeps energy loss minimal, aiding fast charges that top up batteries in under an hour for most models.
For manufacturers, the versatility shines through in custom fits. Whether in AC guns for home use or DC for rapid stations, the switch’s PCB terminals solder easily into boards, speeding assembly lines that churn out thousands of units weekly. This scalability helps companies meet rising demand, with global EV sales climbing past 10 million units yearly, each needing dependable parts.
As these benefits stack up, it’s worth spotlighting the supplier behind such innovations, ensuring quality from start to finish.
Meet ZHEJIANG KANGERLE ELECTRONICS CO. LTD
ZHEJIANG KANGERLE ELECTRONICS CO. LTD stands as a key player in supplying waterproof micro switches, drawing on decades of know-how since its start in the early 1990s in Wenzhou. The firm churns out over 50 million pieces monthly, backed by ISO9001 and IATF16949 certifications that guarantee consistent output. Their lineup covers micro switches tailored for wet environments, with teams of engineers tweaking designs for specific needs like those in charging gear. This focus on reliability has earned them spots in automotive and appliance sectors, where products like the KW1-1C-2C undergo rigorous tests for endurance and sealing.
Wrapping Up the Impact
All told, the application of waterproof micro switches KW1-1C-2C in new energy charging guns marks a step forward in making EV tech more dependable and user-friendly. From locking mechanisms that secure connections to detection features that safeguard against faults, these components underpin smoother operations across stations worldwide. As networks grow, picking parts with proven track records becomes key to staying ahead, fostering confidence among users and operators alike.
Frequently Asked Questions
What role do waterproof micro switches KW1-1C-2C play in new energy charging guns?
These switches handle detection and locking in charging guns, ensuring secure plugs and safe power flow even in wet conditions, based on setups in public stations where they prevent mishaps during daily use.
How does the IP67 rating benefit applications in EV charging?
The IP67 rating shields against dust and water, cutting failures in outdoor spots like parking lots, with field data showing extended life spans in rainy areas.
Are there specific specs to consider for micro switches in charging gun electronic locks?
Yes, look at cycle life over 100,000 and operating force around 120gf, which suit the repeated actions in locks, drawing from assembly practices that prioritize durability.
Can waterproof micro switches improve safety in new energy systems?
Absolutely, by monitoring connections in real time, they stop current if plugs loosen, aligning with safety protocols in fleets that log high uptime.
