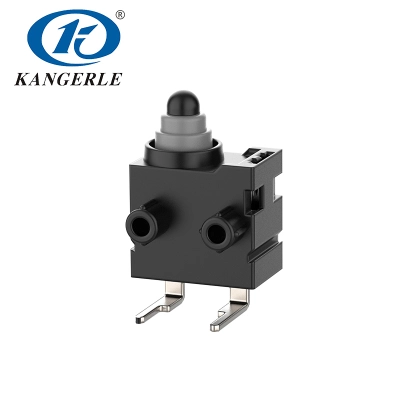

Ever think about the tiny parts that keep our gadgets going strong? In wet or dusty spots, regular switches fail fast. But the Waterproof Micro Switch KW7-1B-E-B1 changes that. It’s tiny yet tough, earning its spot as the world’s smallest in waterproof tech. This post breaks it down for you—specs, tests, and uses. Whether you build devices or just like tech, you’ll see how this switch fits in.
We’ll look at its build, how it holds up, and real applications. Ready to explore the world’s smallest waterproof micro switch? Let’s jump in.
Why the KW7-1B-E-B1 Stands Out
This switch combines small size with big reliability. Engineers love it for tight spaces where others can’t go. It handles harsh conditions without skipping a beat.
Core Features Overview
First off, it’s a tap-return type. Press it, and it bounces back quick. The look is spotless. That shows top-notch build quality.
Exact Measurements and Build Details
Size-wise, it’s super compact. Key numbers include 5.35 mm height, 5.6 mm width in spots, and 0.4 mm gaps. From the drawing:
- Free Position (FP): Up to 7.9 mm
- Operating Position (OP): 7.2 mm with ±0.3 mm wiggle room
- Total Travel Position (TTP): At least 5.5 mm
- Operating Force (OF): No more than 300 gf
These make it fit anywhere small. The structure sticks to the drawing, with vertical action for precise testing.
Tough Performance in Tests
The KW7-1B-E-B1 gets put through the wringer. Mechanical and electrical checks ensure it lasts.
Mechanical Durability Highlights
Actuating force test: Set it vertical, add load to the handle center until it stops. The max matches the drawing—balanced for easy use.
Terminal and Static Strength
Terminals take 3N load any way for 60 seconds each. They bend a bit but don’t break. Static test: 3N on the handle for 60 seconds. No damage shows up, mechanical or electrical.
Reliability Over Time and in Harsh Settings
Endurance is key for switches in daily use. This one shines in long runs and bad weather.
Longevity Through Cycles
Load life: 0.1A at 12V DC, 15-20 ops per minute, 1-1.5 mm travel, 100,000 times. Post-test, contact resistance hits 3Ω max, insulation 50MΩ min. AC100V no break, mechanics fine.
Soldering and Heat Resistance
Hand solder at 350±20℃ for 3 seconds, under 50g pressure. Switch stays whole, performance unchanged.
Facing the Elements Head-On
From cold to wet, it keeps working. Temp range: -40℃ to +85℃.
Test of Heat and Cold Endurance
High temp: 70±2℃ for 96 hours. Recover 1 hour normal, test soon after. No cracks or drops in function.
Low temp: -20±2℃ same time. Results match—no issues.
Test of Moisture and Water Proofing
Moisture: 40±2℃, 90-95% RH, 96 hours. Still good.
Water test: 1m deep, 20±5℃, half hour. Dry 1 hour. IP67 rated, no harm.
Here’s a quick table:
| Environment Test | Setup | Results |
|---|---|---|
| High Temp | 70±2℃, 96h | Function normal, no defects |
| Low Temp | -20±2℃, 96h | Function normal, no defects |
| Moisture | 40±2℃, 90-95% RH, 96h | Function normal, no defects |
| Waterproof | 1m, 20±5℃, 0.5h | IP67, function normal |
Practical Uses in Everyday Tech
This switch goes into vehicles where size and weather matter. It boosts device life and cuts fixes.
Vehicle Lock Systems
Perfect for cars and EVs. Fits car locks for doors or trunks—small and sealed.
Specialized EV Applications
In electric bikes: Handlebar locks for quick control, brake lights for safety, kickstand locks to stay put. Waterproof keeps them reliable in rain.
- Car locks: Triggers smooth in wet weather.
- EV locks: Secures parts against elements.
- Handlebar locks: Fast snap for steering.
- Brake light locks: Lights up right every time.
- Kickstand locks: No slips when parked.
Tips for Use and Storage
Get the most out of it with right handling. Avoid common slips.
Soldering Guidelines
Check conditions to stop flux leak from top. No solvent clean after. Wire terminals: Insert first, then solder. High heat or long time hurts performance.
Proper Storage Methods
Keep at -10℃ to +40℃, under 85% humidity. No corrosive air or sun. Packaged, no extra weight. Sealed post-delivery up to 90 days. Leftovers? Bag them, seal from moisture and gases.
Spotlight on Zhejiang Kangerle Electronics Co., Ltd.
As a leading waterproof micro switches supplier, Zhejiang Kangerle Electronics Co., Ltd. delivers quality from Yueqing, China. They have branches in Shenzhen, Zhongshan, and Hangzhou for wide reach. Their KW7 series shows commitment to tough, precise parts that help brands shine.
Wrapping It Up
Diving into the world’s smallest waterproof micro switch shows its power in small packages. The KW7-1B-E-B1 delivers on specs, endurance, and versatility—from car locks to EV handles. It cuts failures, saves costs, and builds strong brands. Consider it for your next build.
