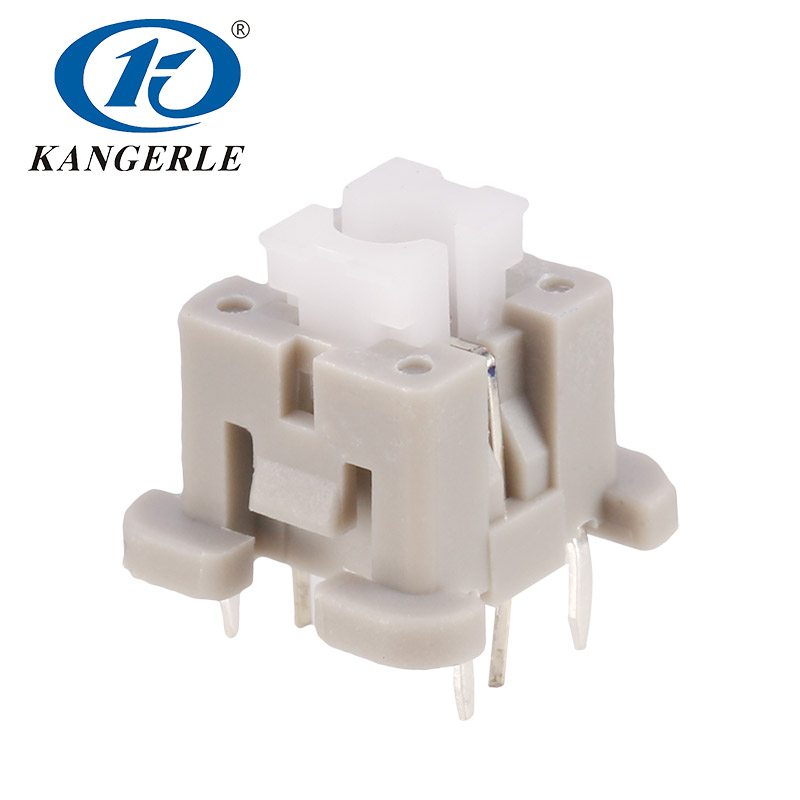

LED tact switch 12x12x10D-R

illuminated tact switch 12x12mm with push button

illuminated tactile switch, is a type of electronic switch that combines the functionality of a tactile switch with a built-in LED. There are many types of LED tact switches in KANGERLE for your choice.

illuminated tact switch, led tact switch, momentary tact switch,waterproof tact switch,6×6 tact switch,tact push button switch,tactile push button switch,SMD tact switch, DIP tact switch,tact switch 12x12mm

LED tact switch 12x12x10D-R

illuminated tact switch 12x12mm with push button

illuminated tactile switch, is a type of electronic switch that combines the functionality of a tactile switch with a built-in LED. There are many types of LED tact switches in KANGERLE for your choice.

illuminated tact switch, led tact switch, momentary tact switch,waterproof tact switch,6×6 tact switch,tact push button switch,tactile push button switch,SMD tact switch, DIP tact switch,tact switch 12x12mm

LED tact switch 12x12x10D-R

illuminated tact switch 12x12mm with push button

illuminated tactile switch, is a type of electronic switch that combines the functionality of a tactile switch with a built-in LED. There are many types of LED tact switches in KANGERLE for your choice.

illuminated tact switch, led tact switch, momentary tact switch,waterproof tact switch,6×6 tact switch,tact push button switch,tactile push button switch,SMD tact switch, DIP tact switch,tact switch 12x12mm

LED tact switch 12x12x10D-R

illuminated tact switch 12x12mm with push button

illuminated tactile switch, is a type of electronic switch that combines the functionality of a tactile switch with a built-in LED. There are many types of LED tact switches in KANGERLE for your choice.

illuminated tact switch, led tact switch, momentary tact switch,waterproof tact switch,6×6 tact switch,tact push button switch,tactile push button switch,SMD tact switch, DIP tact switch,tact switch 12x12mm

PRODUCT DETAIL

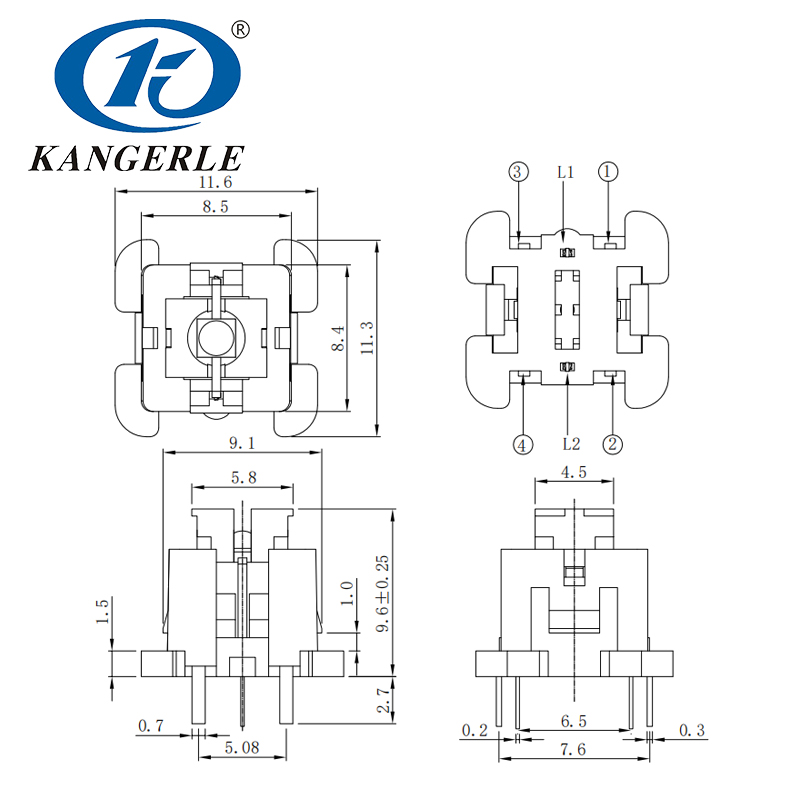

LED tact switch 12x12x10D-R插图

Chinakel LED Tact Switch Feature

Rated Load 50mA DC12VMAX ; 0.1m A 5V D C MIN
Temperature -20~70℃
Operating Force 160±50gf/250±100gf
Circuit NO
Contact Resistance ≤100mΩ
Insulation Resistance ≥100MΩ(DC 500V)
LED Color R/G/B/Y/W/P/RY/RG/RB/YG/RGB…
LED Current ≤20mA
Electrical Life ≥100,000 cycles
Certification RoHS
