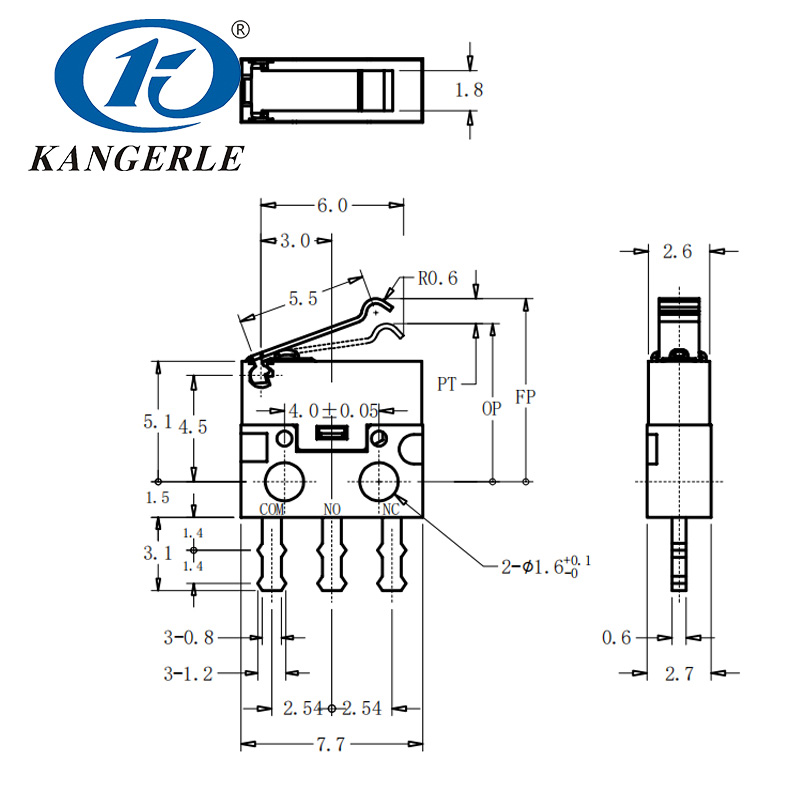

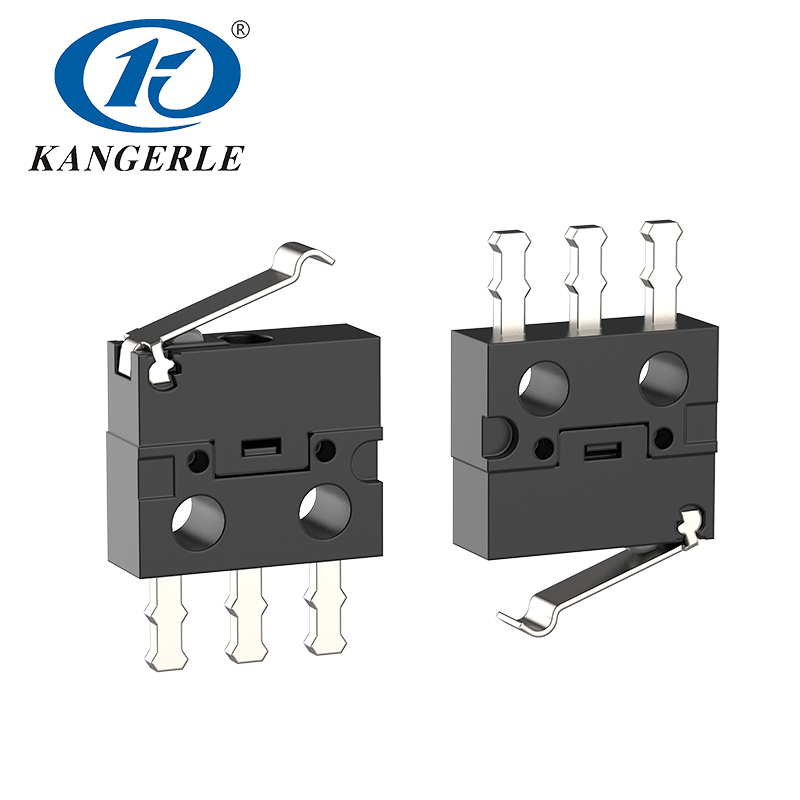

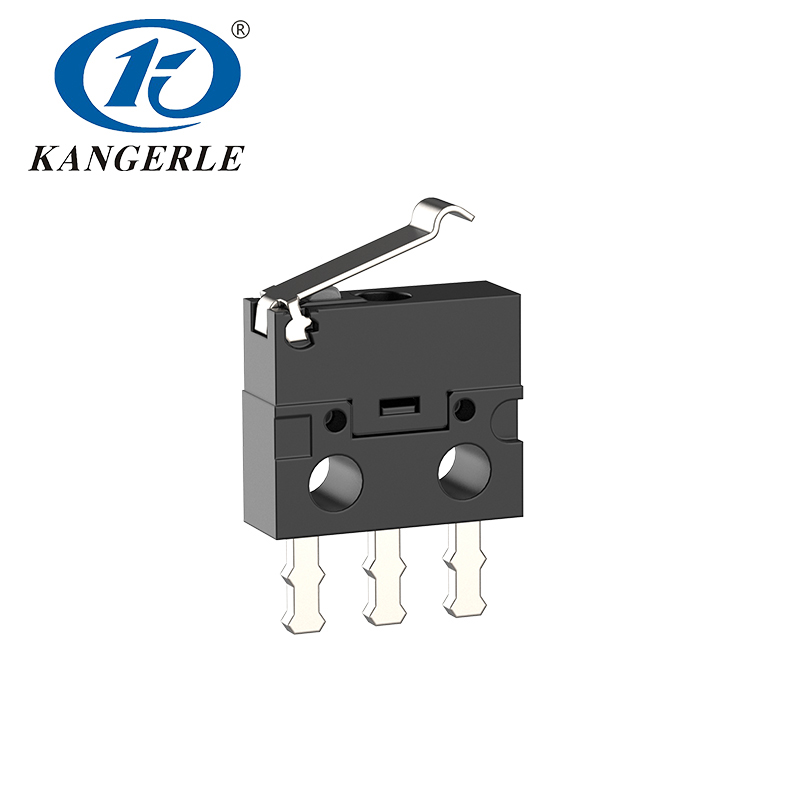

Introducing the new KFC-W-22 Detector Switch, a compact and reliable component designed for precise detection applications. It features a low operating force of 30±10gf and offers flexible circuit options including SPDT. With a rated load of DC30V 100mA, an extended electrical life of 50,000 cycles, and RoHS compliance, this switch ensures consistent performance and durability in a wide operating temperature range from -10 to +60°C.
Product Series: Detector Switch W Series.
Applications: children’s toy, reading pen, electronic cigarettes, anti-theft alarm, shared power bank, GPS, door access control, ETC, digital camera,etc.
Introducing the new KFC-W-22 Detector Switch, a compact and reliable component designed for precise detection applications. It features a low operating force of 30±10gf and offers flexible circuit options including SPDT. With a rated load of DC30V 100mA, an extended electrical life of 50,000 cycles, and RoHS compliance, this switch ensures consistent performance and durability in a wide operating temperature range from -10 to +60°C.
Product Series: Detector Switch W Series.
Applications: children’s toy, reading pen, electronic cigarettes, anti-theft alarm, shared power bank, GPS, door access control, ETC, digital camera,etc.
Introducing the new KFC-W-22 Detector Switch, a compact and reliable component designed for precise detection applications. It features a low operating force of 30±10gf and offers flexible circuit options including SPDT. With a rated load of DC30V 100mA, an extended electrical life of 50,000 cycles, and RoHS compliance, this switch ensures consistent performance and durability in a wide operating temperature range from -10 to +60°C.
Product Series: Detector Switch W Series.
Applications: children’s toy, reading pen, electronic cigarettes, anti-theft alarm, shared power bank, GPS, door access control, ETC, digital camera,etc.
Introducing the new KFC-W-22 Detector Switch, a compact and reliable component designed for precise detection applications. It features a low operating force of 30±10gf and offers flexible circuit options including SPDT. With a rated load of DC30V 100mA, an extended electrical life of 50,000 cycles, and RoHS compliance, this switch ensures consistent performance and durability in a wide operating temperature range from -10 to +60°C.
Product Series: Detector Switch W Series.
Applications: children’s toy, reading pen, electronic cigarettes, anti-theft alarm, shared power bank, GPS, door access control, ETC, digital camera,etc.
| Rated Load | DC30V 100mA |
| The Use of Temperature | -10～+60℃ |
| Operating Force | 30±10(gf) |
| Circuit | SPDT/SPST NO/SPST NC |
| Contact Resistance | 500mΩ Max |
| Insulation Resistance | 100MΩ Min |
| Electrical Life | 50,000cycles |
| Certification | RoHS |
