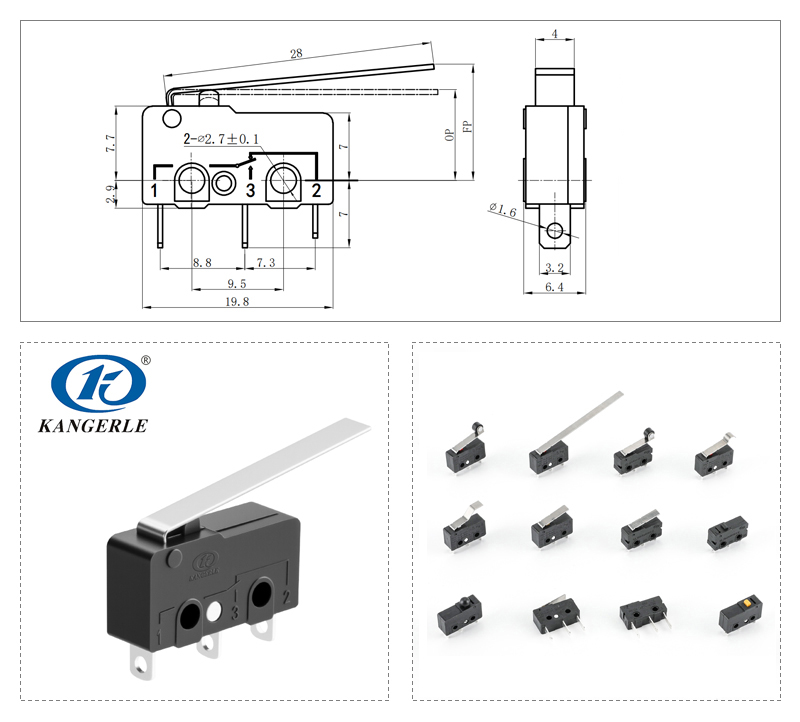

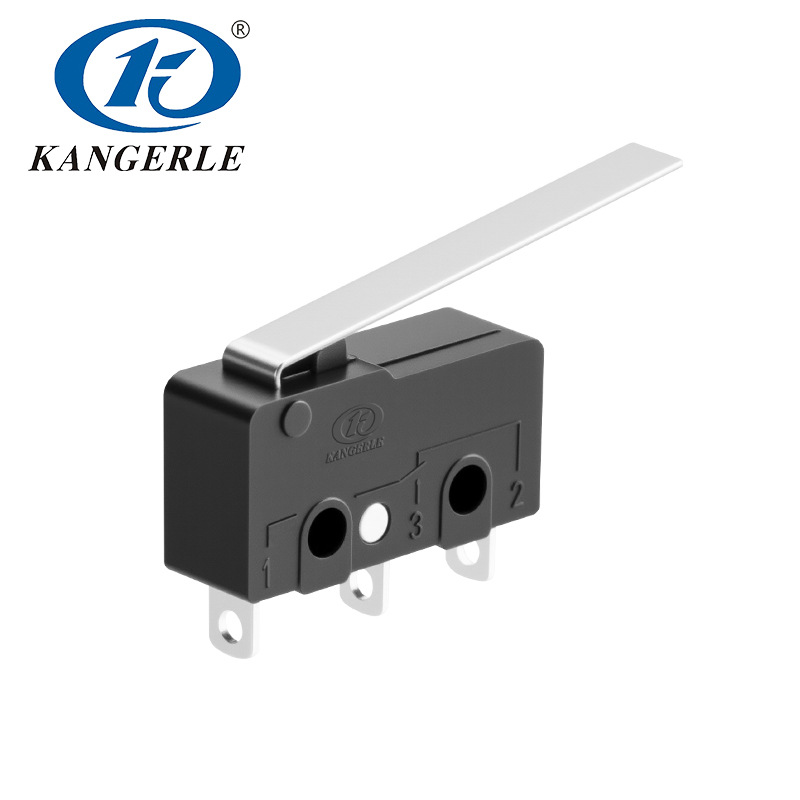

The KW12 micro switch features high-reliability design, supporting 0.1-10A 125/250VAC and 0.1-5A 36VDC loads for diverse electrical environments. It offers SPDT/NO/NC circuit options, with contact resistance ≤50mΩ, dielectric strength ≥1500VAC, and insulation resistance ≥100MΩ (DC500V). Boasting a mechanical life ≥1 million cycles and electrical life of 10,000~50,000 cycles, its actuation force is 170±30gf, operating at -25℃~125℃. Certified by UL, TUV, CQC, CE, and CB, it meets stringent industrial and consumer electronics requirements.
Product Series:KW12 Series.
Applications:Gas range、Water heater、Ice maker 、Disinfection cabinet,etc.
The KW12 micro switch features high-reliability design, supporting 0.1-10A 125/250VAC and 0.1-5A 36VDC loads for diverse electrical environments. It offers SPDT/NO/NC circuit options, with contact resistance ≤50mΩ, dielectric strength ≥1500VAC, and insulation resistance ≥100MΩ (DC500V). Boasting a mechanical life ≥1 million cycles and electrical life of 10,000~50,000 cycles, its actuation force is 170±30gf, operating at -25℃~125℃. Certified by UL, TUV, CQC, CE, and CB, it meets stringent industrial and consumer electronics requirements.
Product Series:KW12 Series.
Applications:Gas range、Water heater、Ice maker 、Disinfection cabinet,etc.
The KW12 micro switch features high-reliability design, supporting 0.1-10A 125/250VAC and 0.1-5A 36VDC loads for diverse electrical environments. It offers SPDT/NO/NC circuit options, with contact resistance ≤50mΩ, dielectric strength ≥1500VAC, and insulation resistance ≥100MΩ (DC500V). Boasting a mechanical life ≥1 million cycles and electrical life of 10,000~50,000 cycles, its actuation force is 170±30gf, operating at -25℃~125℃. Certified by UL, TUV, CQC, CE, and CB, it meets stringent industrial and consumer electronics requirements.
Product Series:KW12 Series.
Applications:Gas range、Water heater、Ice maker 、Disinfection cabinet,etc.
The KW12 micro switch features high-reliability design, supporting 0.1-10A 125/250VAC and 0.1-5A 36VDC loads for diverse electrical environments. It offers SPDT/NO/NC circuit options, with contact resistance ≤50mΩ, dielectric strength ≥1500VAC, and insulation resistance ≥100MΩ (DC500V). Boasting a mechanical life ≥1 million cycles and electrical life of 10,000~50,000 cycles, its actuation force is 170±30gf, operating at -25℃~125℃. Certified by UL, TUV, CQC, CE, and CB, it meets stringent industrial and consumer electronics requirements.
Product Series:KW12 Series.
Applications:Gas range、Water heater、Ice maker 、Disinfection cabinet,etc.
| Rated Load | 0.1-10A125/250VAC；0.1-5A 36VDC |
| Temperature | 25T125 |
| Operating Force | 170±30gf |
| Circuit | SPDT/SPST NC/SPST NO |
| Contact Resistance | ≤ 50MΩ |
| Withstand Voltage | ≥1500VAC |
| Insulation Resistance | ≥100MΩ （DC500V） |
| Mechanical Life | ≥ 1,000,000 times |
| Electrical Life | ≥ 10,000/50,000 times |
| KW12 Certification | UL/TUV/ CQC/CE/ CB |
